Diesel engine Self Priming Pump Set

Diesel engine self-priming trash pump set

Guzu diesel engine self priming pump is designed for reliable solids and clear liquids handling. After initial priming, they continue to reprime automatically, they provides fast and cost effective pumping solution for larger jobs. Self priming pumps are designed to safely move water that contains debris and solids. They have large, open style impellers that can safely pass solids without being damaged. Another useful feature is the quick release system that allows easy access for cleaning out the pump case.


GZT- 4 inch diesel engine driven self priming pump set

• Flow to USGPM (m³/h): 450(102)

• Head to ft(m): 133(40.5)

• Maximum RPM: 1950

• Maximum Liquid Temperature: -10℃~+71℃

• Diesel Engine Brand: Cummins, Deutz, Perkins, Yanmar and Weichai.

GZT- 6 inch diesel engine driven self priming pump set

• Flow to USGPM (m³/h): 1480(335)

• Head to ft(m): 109(33)

• Maximum RPM: 1550

• Maximum Liquid Temperature: -10℃~+71℃

• Diesel Engine Brand: Cummins, Deutz, Perkins, Yanmar and Weichai.

GZT- 8 inch diesel engine driven self priming pump set

• Flow to USGPM(m³/h): 2600(600)

• Head to ft(m): 102(34)

• Maximum RPM: 1500

• Maximum Liquid Temperature: -10℃~+71℃

• Diesel Engine Brand: Cummins, Deutz, Perkins, Yanmar and Weichai.

GZT- 10 inch diesel engine driven self priming pump set

• Flow to USGPM(m³/h): 3450(780)

• Head to ft(m): 129(39)

• Maximum RPM(RPM): 1500

• Maximum Liquid Temperature: -10℃~+71℃

• Diesel Engine Brand: Cummins, Deutz, Perkins, Yanmar and Weichai.

Self priming trash pump set features and benefits

10 hours oil tank

Each Guzu's dewatering pump set have at least 10 hours oil tank to handle the daily work.

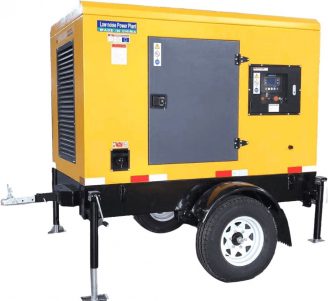

Skid, trailer and sound proofing canopy

Guzu's dewatering pump have skid, trailer-mounted and canopy pumps with integrated lifting bail, tie downs and fuel tank, easy transport and flexibility.

Affordable spare parts

Maintaince use afforadable spare parts are are readily available.

Quick delivery

Guzu's dewatering pump sets can be delivery within 30-40 days.

Fuel saving

Guzu's dewatering pump have lower fuel consumption to save your running cost.

Easy to operate

User manual and video to operate the pumps send along with the dewatering pump.

Your Reliable Dewatering Pump Supplier

Application

Sewage Bypass

Open Pit Mine Dewatering
Construction Site Dewatering
Flood Control


0% Quality Complaint


Manufacture Test Certification

Guzu Machinery has advanced performance test station, QC inspection team, 100% inspected dewatering pump before shipment, guarantee the product quality and eliminate your concerns.

Guzu Machinery issue a testing certificate each order before shipment. Make sure the self priming trash pump set to meet the working point and all the requirements.



Genuine diesel engine power pack



1 Year Guarantee

Guzu Machinery guarantte each diesel engine of the dewatering pump are genuine, it have after-sale support provided by the diesel engine manufacture, it is easy to find a after sale service locally.

Each pump set have 1 year guarantee, if you have any problems just give us a call. If a problem falls within the manufacture's warranty conditions then we will send a new spare part to you with no cost.



Dewatering pump basic- The beinner's guide


Overview

Are you looking forward to buying reliable, high efficiency, cost-effective dewatering pumps for your industrial, commercial, mining, petroleum, agriculture, and municipal or public applications? We offer you the perfect landing pad at Guzu Machinery for the one-window solution to all your professional needs. Our customer services are expanded worldwide from Europe to North America, Asia, Australia, and Africa. Our 24/7 services range from supervision in technical and operating procedures to assisting maintenance and repairing facilities along with premium quality spare parts.

A brief glimpse over the dewatering pump guide book for their types, sizes, specifications, classifications, and applications will help you shortlist the ideal pumping solution for your business. We keep our products within the affordable price range to meet the standards of contemporary state-of-the-art quality pumps. Guzu Machinery obtains perfection in compact designing, simplicity, rigidity, and sustainability in construction and durability in functional characteristics of engineering.

Our range of affordable dewatering pumps such as diesel trash pump, diesel water pump, trailer water pump, groundwater pump, farm water pump, construction water pump, agriculture water pump, pit pump, storm water pump, irrigation pump, industrial water pump, self priming pump. Dewatering pumps cover all aspects of pumping from underground/ surface to construction sites, mining pits/quarries, flood, sewage, trash displacement, and agricultural demands.



What is Diesel engine dewatering pump

Diesel-driven dewatering pump is a trailer or base-mounted pump connected with a diesel engine to meet the enhanced power requirements for dewatering use. Its application ranges from construction, industrial, agricultural, mining, petroleum, and municipality operations. The capacity of the pump is defined by the operational requirements and geography of the site. They are available in diverse types, sizes, and characteristics.

Guzu's dewatering pumps have skid, trailer-mounted, and canopy pumps with integrated lifting bail, tie-downs, and fuel tanks, easy to transport and flexible for longer stretches of operation in severe work scenarios due to higher fuel capacity of at least 10 Hrs of continuous operation.



Types of diesel engine dewatering pumps

Guzu Machinery Dewatering solutions are ideal for every pumping and dewatering application. Available in multiple types suitable for construction, mining, flood, Stream diversion, municipality, and community dewatering applications. They are capable of intense loads in diverse circumstances during dewatering activities, handling trash, corrosive fluids, abrasive solids, and fibrous material. The most outstanding feature of diesel pumps is that they do not require an electrical supply and are readily movable. No additional starting device is required. The vast range of types and specifications can fulfill all your requirements efficiently and cost-effectively. Our engineers with over ten years of experience are well equipped with skill, knowledge, infrastructure, and technology to produce high efficiency and cost-effective diesel pumps for vast arrangements. Types of diesel-driven dewatering pumps range from Self-Priming Dewatering Pumps, Self-Priming Solid Handling Dewatering Pumps, Vacuum Assistant Dewatering Pumps, Industrial Dewatering pump(Split case pump, End suction pump, Multistage pump). For further breakdown let’s have a look at the table

Type
Capacity up to
Head up to
Timperature handling
Diesel engine brand
Self priming dewatering pump

800 m³/h

60 m

0℃~+70℃

Cummins, Deutz, Yanmar

Self priming solid handling dewatering pump

700 m³/h

60 m

0℃~+70℃

Cummins, Deutz, Yanmar

Vacuum-assisted dewatering pump

2000 m³/h

120 m

0℃~+60℃

Cummins, Deutz, Yanmar

Industrial dewatering pump

5000 m³/h

110 m

0℃~+80℃

Cummins, Deutz, Yanmar

The application of the pump

Dewatering is the process of water removal. This process is carried out under certain circumstances to carry out required activities on the site. Apart from the minor applications, major activities need powerful tools to remove water from the site either on the surface or underground water-table. Diesel dewatering pumps are considered the perfect choice to handle large displacement of clean and contaminated water/ fluid from the site. The applications of diesel-dewatering pumps are:

·Mine dewatering ·Construction site dewatering ·Municipal ·Oil and gas working site dewatering ·Industrial dewatering ·Agriculture irrigation ·Wellpoint dewatering ·Firefighting equipment



Brand of diesel engine


Guzu Machinery is experienced in applying state-of-the-art technology at every stage of designing/manufacturing diesel dewatering sets. We focus on the simplicity of design for better accessibility, quality of material for long-lasting performance, and best engines for durability and stability of operations. Our dewatering pump sets equipped with diesel engines are known for their best reputation around the globe. Our trusted engine sets include Cummins, Deutz Technology, Yanmar, Perkins, and Weichai. Increasing efficiency and lowering the initial cost of dewatering sets is the phenomenon of choosing these engine sets for dewatering solutions. We also offer customized dewatering pumps as per customers’ requirements. Our perfect designs sizes of Suction and discharge, flow rates are capable of fulfilling dewatering activities of fluid types and working site requirements.



Several styles of diesel engine driven dewatering pump


Every situation of dewatering has its dynamics. It means a pump suitable in one condition will be worthless in another. Guzu Machinery focuses on every possibility before designing pumping solutions for multiple applications during different circumstances.

Our trailer-mounted dewatering pumps are easily transportable. The ability of comfortable relocation makes these machines a perfect choice for dewatering in remote areas or sites that require frequent relocation of pumps. Base mounted pumps with integrated lifting bails, tie-downs, and fuel tanks can operate for extended periods and are easily transportable to the site.


Working principle of diesel engine pump

In most cases, diesel-driven pumps are centrifugal. They have impellers inside a stationary housing called a casing. The function of these impellers is to produce centrifugal movement and convert rotary moment into the hydrodynamic energy of the fluid to displace it from the site. The construction of the pump is simple. It consists of two cords (pipelines) suction cord, discharge cord. The suction cord links the impeller-eye with the water reservoir. It is airtight to prevent air inflow in the flow line. The impeller connects to the engine through a shaft which drives the impeller to produce centrifugal pressure. There are three main impeller types used in dewatering pumps, closed impellers, semi-open impellers, and open impellers. The application of each impeller type solely depends on the fluid on the site. The application of closed impellers is for low viscosity fluids such as cold, hot, and acidic water. Semi-open impellers are applied where small pieces of contamination are present in the water. The vital applications of these types of impellers are for sewage purposes. Open-type impellers are the best choice for rough-duty applications. They can handle large pieces of contamination, debris, rocks, and other solids available in the liquid. The casing in which the impellers are moving is built with a rigid material to handle the high velocity of fuel passing through it. The material of the pump casing and impeller can be customized according to the transfer liquid.



Types of industrial pumps and their applications


Diesel engine driven self-priming trash pump

Diesel engine self-priming sewage pumps work on the flow velocity of the fluid produced by the rotary moment of impellers. These pumps are capable of displacing a high volume of sewage water. Their applications range from municipal works to sewage, construction, and industrial purposes such as food processing units, paper mills, textile, and chemical industries. These pumps are available in different sizes and styles. The famous types are trailer-mounted diesel dewatering pumps and base-mounted dewatering pumps.


Diesel engine driven split case pump

These pumps are usually horizontal in structure. The application of these pumps is irrigation, water supply for mining sites, petrochemical industry, coal processing, power plants, and environmental projects. These pumps are easy to maintain and rectify as they do not need extensive dismantling during maintenance.


Diesel engine driven multi-stage pump

These pumps are centrifugal in construction but differ from conventional centrifugal pumps due to the number of impellers driven through the same shaft. These pumps have two or more impellers to enhance the power of the pump.


Diesel engine driven end suction pump

 These pumps are also centrifugal in construction for pumping high volumes of water from industrial, construction, and mining sites. Their application also extends to flood water disposal and stream diversion. The working principle of these is the same as conventional centrifugal pumps.



How much does a diesel engine dewatering pump cost

Multiple factors determine the cost of diesel driven dewatering pumps such as type of pump, the capacity, length of suction and discharge pipe, brand of diesel engine, power of the engine, type of fluid to be pump, etc. below is a brief table of price range as per the information mentioned:

Type
Capacity
Head
Style
Price
Diesel engine driven self-priming pump

800 m³/h

30 m

Base mounted

$ 6500

Diesel engine driven split case pump

700 m³/h

50 m

Skid mounted

$ 8500

Diesel engine driven multistage pump

2000 m³/h

100 m

Sound attenuated canoply

$ 8000

Diesel engine driven end suction pump

5000 m³/h

70 m

Canopy

$ 5500

Vacuum assistant dewatering pump

5000 m³/h

40 m

Trailer mounted

$ 7500

Advantages and Benefits



Higher Efficiency

Diesel engine dewatering pumps are suitable for all working conditions due to easy transportation, rigid body structure, compact design, no external power source requirements, easy handling, and fewer maintenance requirements. The diesel engine makes it comfortable to water large areas due to higher thrust and comfort displacement.


Mobility

Faster relocation while working on a site especially community services, mining projects, and oil fields when the frequent movement of the equipment is required. Mining projects are carried out in remote areas where electric power is rarely available. In order to operate an electric pump additional power generation system is required. Diesel-powered pumps offer convenient and operational currency.


Responsiveness

Guzu machinery products respond better during floods, heavy water breakdowns, rainy weather, stream diversion, and other natural disasters or job requirements. The frequent relocation of pumps for covering the broader span of Areas in different applications is easy. They can also handle slurry or waspy fluid more efficiently for their up-to-the-mark pump design, higher efficiency, and easy for maintenance.



Purchase guide


If you are looking forward to buying a diesel-powered dewatering pump for your business projects you are at the right place. Guzu Machinery offers free design and 24/7 pre-sale service. Our pumps are equipped with Cummins, Deutz, Yanmar engines with cost-effective post-purchase expenses to fuel consumption, maintenance, and repair costs. The long-lasting impellers can safely pass solids without being damaged. They are compact, versatile, durable, and efficient. They can operate at comparatively too low or too high temperatures compared to other pumps of the same caliber. A single pump can cover multiple operations due to its compact design. While opting for the right dewatering pump saves cost and increases efficiency for your business. Choose Guzu pump, we will help you to get the right pump with any budget and customized requirement, each pump set will be considered the below points to make sure it fits your needs.


Fuel Capacity:

Fuel capacity is crucial when dewatering is required. Dewatering pumps must have broader fuel tanks for long-run operations to maintain a smooth running of pumps and keep them from frequent refilling. Guzu machinery maintains higher standards of engineering techniques to keep work running in all circumstances. We design higher capacity dewatering pumps that have fuel storage of up to 10 hours of consecutive operations.


Fuel Consumption:

Fuel management while carrying out the dewatering of a site plays a vital role in reducing cost. Analyzing the site, type of water, and discharge head before going for the application is imperative before dewatering. An efficient pump with low fuel consumption can save a lot of time and money during a dewatering project.


Transportation:

Built-in features of the pumps of comfort mobility increase their usage and reduce time consumption. Trailer mounted pumps are more beneficial when relocation of a dewatering system occurs due to the demand for water removal from the site. In those sites where frequent relocation of pumps is required, trailer-mounted pumps are the best choice for variable work conditions.


Versatility:

Some of the pumps have multi-role accessories to Increase their utility for multiple jobs with a single structure. It is rarely possible that you find the same working conditions while working on different projects. A pump with ready-to-operate characteristics in every working situation is the prime choice for businesses. It is only possible if the pump has enough accessories for different work scenarios.


Durability:

Diesel dewatering pumps are the most durable machines to operate in intense work conditions. They are more reliable in Hard-duty and flexible in servicing and rectification.


Reliability:

Smooth and continuous performance saves time and cost of the project. When running a dewatering operation, every second has its worth. Dewatering pumps with higher efficiency to stand in a more difficult situation and perform to their optimum are imperative to save time.


About Guzu Machinery

Guzu Machinery is your trusted supplier for water pumping and fluid management. Guzu Machinery serves the Industrial, Agricultural, Construction, Mining, Petroleum and Municipal Markets around the world. We are focused on supplying high quality, reliable, cost-effective pumping solutions, maximizing efficiency in order to satisfy customers’ needs.


Guzu Machinery has engineers with 10 years of diesel pump working experience. They will help you design solutions base on your idea. We welcome custom diesel powered water pump sets. We have a variety of pumps including self priming trash pump, split case pump, EN733/DIN24255 end suction water pump, close-coupled centrifugal pump, submersible sewage pump, multistage pump etc. Guzu Machinery also supply diesel engines and spare parts with reasonable price and genuine quality. Including Cummins, Deutz Technology, Yanmar, Perkins, Weichai. Which will reduce your purchase costs and improve efficiency, to help you explore local markets and win more customers.


Whatever custom diesel driven dewatering pumps or standard diesel driven water pumps, our engineers can help you create from idea to final manufacturing. Let Guzu Machinery become your trust-worthy diesel pump sets suppliers. You will receive a stable delivery time: 30 days Or less, 24H supplied standard loading & product report after delivery, 24 hours fast quote from Guzu Machinery sales engineers. Guzu will help you control cost and get more work done.





How To Select The Right Dewatering Pumps For Rainy Season?


In the summer season when heavy rainfall occurs frequently, we must make emergency preparations for flood control. Before the rain comes, check the drainage facilities and underground pipes and do maintenance work. Emergency dewatering pump is a necessary equipment for flood control. In some flood-prone areas, some residents have their own submersible sewage pumps for emergency backup.



How To Select The Right Dewatering Pumps For Rainy Season? In emergency drainage, the drainage should be fast, easy to use, and the equipment failure rate is low. Most of the emergency drainage is muddy water, and there are particulate impurities. So the clean water pump cannot be used.



Sewage pumps are an effective tool for emergency drainage. It is the most economical and applicable to choose a submersible sewage pump in the village. In cities and towns, self-priming trash pumps and large flow submersible sewage pumps should be used.



Submersible sewage pump is an ideal equipment for draining water in the rainy season. Guzu Machinery supplies submersible sewage pumps for quick water response. It has the characteristics of significant energy saving effect, anti-winding, no blockage. The sewage pump adopts a unique impeller structure and a new type of mechanical seal, which can effectively transport media containing solids and long fibers. Undergone dynamic and static balance tests, make sure the pump has no vibration during operation.



Guzu Self priming trash pump is a non-clogging sewage pump, which is mainly used to transport liquids containing suspended solids such as fibers, paper scraps, and particles. It is widely used in flood, municipal, sewage treatment and dewatering.



Guzu Machinery large flow emergency diesel dewatering pump (Trailer type)



Features

1: Non-clogging impeller can pass through solid particles of 75mm in size. Can pump oil, pulp, manure, manhole sewage, mining sewage etc.

2: After initial priming, they continue to reprime automatically.

3. Suction up to 7.6 metres. Very fast and convenient to set up on site.

4. Competitive price, reduce the project cost.



Video



Why good dewatering pumps are critical to your project?



–We have some projects close to the sea with deep excavation. Because we need to drain the water to work inside of the excavation. We would like to know the prices of the diesel dewatering pumps.



–I am looking to supply the construction drainage pump units for Hire. Our application is to remove water from road works during repairs.



–I need 8 inch diesel water pumps that can lift water up to 15 meters and will be used to dry the streets and underpass from flood after rain.



–We need a self priming trash pump which has a 6” outlet with a diesel engine to remove water from the quarry pit which is muddy. Please let me know whether you can supply the said water pump with the price and technical data / product picture etc.



–We urgently need dewatering pumps 1000m3/hr, 10 meter head for Drainage of Urban road and Freeway tunnel, De-watering rain and flood water from urban drainage, Municipal Drainage Project, Temporary diversion.



–Kindly assist us with a diesel powered self priming dewatering pump.This pump will be used to pump water from an open pit mine, There are a lot of bends to a distance where the water will be pumped out.



–We have an inquiry for a mine dewatering pump. We want to remove rain water during the rainy season & natural ground water seepage on further deepening of mines.



Do you need our assistance with a sewer bypass, dewatering or moving high quantities of water?

Guzu Machinery offers solutions to all your pumping requirements. Whether it’s dewatering, water transferring, sewage bypass or flood control, We will set you up with the proper pump to suit your individual needs.



Options available include:

-3”, 4″, 6″, 8″, 10″ sizes are available

-Based-mounted, trailer-mounted optional

-Open-style or sound attenuated optional

-Weatherproof enclosures available for maximum protection in outdoor applications

-Stainless steel construction for highly corrosive environments

-Reliable diesel engine systems




Storm Water Flooding? Emergency Dewatering Pumps!


Since July 17th, heavy rains have occurred in many parts of Henan. Due to the rare and continuous heavy rainfall, many dangerous situations have appeared in Zhengzhou City. The urban area has shown serious waterlogging, which has seriously affected Zhengzhou's railways, highways and civil aviation traffic. All stations of Zhengzhou Metro have suspended operation services.


The British capital London suffered continuous thunderstorms, roads were flooded, and buses and other vehicles were trapped in the flood.


With the further intensification of global warming, sudden and disastrous weather and climate such as heavy rainfall, heavy rains, tropical storms, and typhoons have become more frequent. Not only has it added impact to people’s lives and travel, the heavy rainfall in some areas threatens people’s lives and property.

Municipal departments are in urgent need of mobile flood control pumps to protect their homes.



Mobile dewatering pumps play an important role in urban flood prevention and drainage. It can quickly respond to flooding and save people's lives and property. Traditional flood dewatering pumps have poor self-priming and poor anti-clogging capabilities.



Guzu Machinery focuses on design and manufacturing high quality, non-clogging diesel dewatering pumps to help you control cost and get more work done, maximizing efficiency in order to satisfy your needs.



Guzu diesel dewatering pumps have strong self-priming ability, strong anti-clogging ability, simple maintenance and high pumping capacity. They are very suitable for the complex and changeable environment in municipal emergency applications. Guzu diesel dewatering pumps have been tested by the market and recognized by a lot of customers around the world.



What's diesel engine driven fire fighting pump?



When emergencies occur, it’s better to be prepared. The fire fighting pump delivers the water via the pipe system to the fire sprinklers to suppress the fire. We have diesel/electric fire fighting pumps that fit for your purpose. We can help you control cost and minimize maintenance and downtime. Guzu Machinery supplies end-suction fire fighting pump, split-case fire fighting pump, vertical in-line and vertical multistage fire fighting pumps for industrial and commercial fire protection. Our fire systems meet fire protection standards and fire component standards.



Specifications:

Capacity: 1500-6000 gpm

Head: 5-12 bar

Power: 220-710kw

Drives: Diesel engine, Electric motors

Material: Cast iron, bronze, stainless steel. (Optional materials available for sea water applications.)



Benefits:

1. Trusted diesel power system. (Cummins,Deutz,Perkins,Yanmar, Weichai diesel engine optional)

2. Automatic alarm: automatic alarm protection for low oil pressure, high water temperature and other faults of diesel engine, alarm and stop when over speed.

3. High efficiency, low noise, long service life.

4. Safe and stable operation.

5. Easy installation and maintenance.



Applications:

Guzu diesel engine driven fire fighting pumps can fully meet the fire fighting requirements of commercial buildings, factories, warehouses, docks, airports, petrochemical plants, power plants, liquefied gas stations, textile and other industrial and mining enterprises. The advantage is that when the electric fire pump cannot be started after the sudden power failure of the building's electrical system, the diesel fire pump will be automatically started for emergency water supply.



Why good dewatering pumps are critical to your project?


The US Environmental Protection Agency’s (EPA) Clean Air Act sets out emission reduction standards for diesel engines. The standards demand a reduction in the six common criteria pollutants – particulate matter (PM), ozone, sulfur dioxide, nitrogen oxides (NOx), carbon monoxide and lead. Implementation of the standards has occurred in stages, or tiers, with the deadline for compliance under the final stage – Final Tier 4 (FT4) – now looming. Diesel engines in every industry, in every application, from large-scale marine engines to small landscape equipment engines, are subject to these regulations. While deadlines are contingent on engine size, FT4 engine requirements will be fully implemented for all off road diesel engines by the end of 2018. Whether you work in construction, mining, municipal wastewater or at an industrial plant, the emission reduction technologies on Final Tier 4 (FT4) diesel engines for portable pumps are no doubt on your mind.



One of the big changes that FT4 brings is how to approach operation procedures. When working with an FT4 engine, it is very important to size the horsepower of the pump to your application. When choosing a diesel pump with an FT4 engine, make sure to consider power requirements. FT4 engines with higher percentage loads will operate cleaner and require less emissions related maintenance than engines that operate with lower percentage loads.



Guzu Machinery recommends GZT Self Priming Trash Pump With A Final Tier 4 Engine. Guzu Machinery is a full-service provider of high quality pumps, pumping equipment and engineering expertise, displaying our GZT heavy duty, self priming trash pump with a Final Tier 4 Cummins diesel engine. We understand that the transition to FT4 demands change, and we have been working hard to make this as seamless as possible for you. We deliver pump packages with high performance while significantly reducing carbon emissions.



During the design process, the self priming trash pump with Final Tier 4 engines were thoroughly tested to ensure that the engines maintained the performance and efficiency that our customers have come to expect from our self priming sewage pump. We are very pleased with the final product we are offering to our customers.



GZT-6 self-priming trash pump provides fast, cost effective pumping solution for larger jobs. The 6 inch trash pump is built with heavy-duty cast-iron construction, has the ability to self-prime and re-prime automatically, The GZT-6 provides flow rates up to 1,480 gpm, heads to 109 feet and can handle solids up to 3”. Guzu Machinery diesel engine driven trash pumps outperform other centrifugal trash pumps on the market and cost less to operate. The quality and dependability engineered into each heavy duty trash pump provides the performance you need to get the job done quickly. These new final Tier 4 models are available as skid mounted or trailer mounted units.



Guzu Machinery is a full-service manufacturer and provider of high-quality dewatering and construction pumps, pumping equipment and engineering expertise for dewatering, bypass, and emergency pumping applications worldwide. Welcome to contact Guzu Machinery for pump options, accessories and applications assistance.



Do you have Tier 4F diesel engine pump package for US market?


The US Environmental Protection Agency’s (EPA) Clean Air Act sets out emission reduction standards for diesel engines. The standards demand a reduction in the six common criteria pollutants – particulate matter (PM), ozone, sulfur dioxide, nitrogen oxides (NOx), carbon monoxide and lead. Implementation of the standards has occurred in stages, or tiers, with the deadline for compliance under the final stage – Final Tier 4 (FT4) – now looming. Diesel engines in every industry, in every application, from large-scale marine engines to small landscape equipment engines, are subject to these regulations. While deadlines are contingent on engine size, FT4 engine requirements will be fully implemented for all off road diesel engines by the end of 2018. Whether you work in construction, mining, municipal wastewater or at an industrial plant, the emission reduction technologies on Final Tier 4 (FT4) diesel engines for portable pumps are no doubt on your mind.



One of the big changes that FT4 brings is how to approach operation procedures. When working with an FT4 engine, it is very important to size the horsepower of the pump to your application. When choosing a diesel pump with an FT4 engine, make sure to consider power requirements. FT4 engines with higher percentage loads will operate cleaner and require less emissions related maintenance than engines that operate with lower percentage loads.



Guzu Machinery recommends GZT Self Priming Trash Pump With A Final Tier 4 Engine. Guzu Machinery is a full-service provider of high quality pumps, pumping equipment and engineering expertise, displaying our GZT heavy duty, self priming trash pump with a Final Tier 4 Cummins diesel engine. We understand that the transition to FT4 demands change, and we have been working hard to make this as seamless as possible for you. We deliver pump packages with high performance while significantly reducing carbon emissions.



During the design process, the self priming trash pump with Final Tier 4 engines were thoroughly tested to ensure that the engines maintained the performance and efficiency that our customers have come to expect from our self priming sewage pump. We are very pleased with the final product we are offering to our customers.



GZT 6 self-priming trash pump provides fast, cost effective pumping solution for larger jobs. The 6 inch trash pump is built with heavy-duty cast-iron construction, has the ability to self-prime and re-prime automatically, The GZT-6 provides flow rates up to 1,480 gpm, heads to 109 feet and can handle solids up to 3”. Guzu Machinery diesel engine driven trash pumps outperform other centrifugal trash pumps on the market and cost less to operate. The quality and dependability engineered into each heavy duty trash pump provides the performance you need to get the job done quickly. These new final Tier 4 models are available as skid mounted or trailer mounted units.



Guzu Machinery is a full-service manufacturer and provider of high-quality dewatering and construction pumps, pumping equipment and engineering expertise for dewatering, bypass, and emergency pumping applications worldwide. Welcome to contact Guzu Machinery for pump options, accessories and applications assistance.


When emergencies occur, it’s better to be prepared. The fire fighting pump delivers the water via the pipe system to the fire sprinklers to suppress the fire. We have diesel/electric fire fighting pumps that fit for your purpose. We can help you control cost and minimize maintenance and downtime. Guzu Machinery supplies end-suction fire fighting pump, split-case fire fighting pump, vertical in-line and vertical multistage fire fighting pumps for industrial and commercial fire protection. Our fire systems meet fire protection standards and fire component standards.



Specifications:

Capacity: 1500-6000 gpm

Head: 5-12 bar

Power: 220-710kw

Drives: Diesel engine, Electric motors

Material: Cast iron, bronze, stainless steel. (Optional materials available for sea water applications.)



Benefits:

1. Trusted diesel power system. (Cummins, Deutz, Perkins, Yanmar, Weichai diesel engine optional)

2. Automatic alarm: automatic alarm protection for low oil pressure, high water temperature and other faults of diesel engine, alarm and stop when over speed.

3. High efficiency, low noise, long service life.

4. Safe and stable operation.

5. Easy installation and maintenance.



Applications:

Guzu diesel engine driven fire fighting pumps can fully meet the fire fighting requirements of commercial buildings, factories, warehouses, docks, airports, petrochemical plants, power plants, liquefied gas stations, textile and other industrial and mining enterprises. The advantage is that when the electric fire pump cannot be started after the sudden power failure of the building's electrical system, the diesel fire pump will be automatically started for emergency water supply.



Which pump has better performance for your project? End suction pump vs split case pump


What are the differences between end suction pump and split case pump? Let's compare and analyze them.


Different Features:



Split case pump

It is equivalent to two single-suction impellers of the same diameter working at the same time, and the flow can be doubled under the same outer diameter of the impeller; the pump casing is opened horizontally, which is convenient for inspection and maintenance.



End suction pump

End-suction pumps are actually single-suction pumps. The single-stage end-suction centrifugal pump is a simple type of centrifugal water pump. This kind of water pump generally has a small flow rate and is mostly a small pump.



End suction pumps can either be closed or flexible coupled. A closed coupled pump has the impeller directly mounted to the motor shaft without any coupling in between. The benefit of using a closed coupled pump is that the alignment of the motor shaft to the impeller is fixed. However a flexible coupled pump can become misaligned during maintenance. This can create issues if not properly reassembled by trained personnel. Closed coupled end suction pumps require less floor space and less expensive first cost.



Close coupled end suction pump               Flexible coupled end suction pump



Different Construction:

Split case pump is more suitable for conveying large flow and requires stable operation. When the flow rate of the pump is very high, if it is an end suction pump, it must have a large inlet and outlet. At the same time, the speed should not be too large, and it should be stable at about 1450rmp. If a double suction split case pump is used, the size and weight can be relatively reduced, the speed can be increased, and the volumetric efficiency can be increased.



The anti-cavitation ability of the double-suction split case pump is stronger than that of the end suction pump. Since the medium is sucked in at both ends of the impeller, hydraulic symmetry will be formed, so that the balanced axial thrust effect of the double-suction split case pump is better than that of the single-suction end suction pump, and it runs more smoothly. Moreover, the flow rate of the medium is low, and the impeller is not prone to cavitation. Double-suction split case pump mainly sucks the medium at both ends of the impeller, and there is a sealed cavity on each side of the impeller. Rather than the pump has two suction ports. The anti-cavitation ability of the double-suction split case pump is stronger than that of the single-suction end suction pump. Since the medium is sucked in at both ends of the impeller, hydraulic symmetry will be formed, so that the balanced axial thrust effect of the double-suction split case pump is better than that of the end-suction pump, and it runs more smoothly. Moreover, the flow rate of the medium is low, and the impeller is not prone to cavitation. However, the double-suction split case pump has one more sealed cavity than the single-suction pump, so its cost is relatively high.



Different applications:



End suction pump is a kind of water pump that is widely used in agriculture. And capable of being used in hvac systems with capacities up to 4000 gpm and 150 feet of head.



Double suction split case pumps are mostly used for water supply and drainage in mines, cities, power stations, and various water conservancy projects. End suction pumps generally have a relatively small flow rate. The advantage is that the same flow rate, the end suction volume is small, but the axial force is large, and the bearing burden is large. Compared with double-suction pumps, there are many limitations.



Can I use clear water pumps for sewage?


Can clear water pumps be used for sewage? What are the differences between clean water pumps and sewage pumps? The obvious difference between clean water centrifugal pumps and sewage pumps is their structure, the design of impellers and flow channels, and the configuration of other parts. So the applications are also different.



The clean water pumps cannot be used to transport sewage and wastewater. Sewage pumps can transfer clean water.



The structure of the clean water pump is a combination of a motor and a water pump. The clean water pump is only used to transport clean water, so the gap between the impellers is very small. In this way, if debris is generated during the work, it will be easily blocked in the impeller and the fault occurs; when it is used in sewage, it is very likely that blocking, winding, abrasion, corrosion will occur, resulting in damage or scrapping of the pump.



Why can sewage pumps transport sewage?



1, In order to avoid debris from clogging the pipeline, the sewage pump generally designs a very wide flow channel. Therefore, the efficiency is naturally low, so the head is generally not high. The delivery pipe of the clean water pump is very narrow, the head is naturally very high, and the efficiency is higher.



2, To discharge impurities better, the impeller structure of the sewage pump will not be as complicated as the clean water pump. In addition, some saw teeth are specially set to break up the debris with large particles and prevent the debris from entangled on the impeller. , And can be discharged smoothly. But the impeller of the clean water pump is not so simple, so its work efficiency will be higher.



3, The sewage pump is used to remove solids and large particles, and there will be a certain amount of friction. These frictions will cause some damage to the sewage pump, so the wear resistance of the sewage pump is better than that of the clean water pump. The seals of the machine are all made of corrosion-resistant parts. This is caused by their different functions, the clean water pump does not need to consider these issues.



4, Self priming trash pumps (unclogged self priming sewage pumps) are special for demanding jobs, such as handling large volumes of rainwater, gray water and sewage operations in construction, infrastructure projects, mining dewatering and flood control.

Trailer or Skid mounted trash pumps optional. Available in 3 inch ~ 10 inch sizes, can be found on the small and large of jobsites. From clean water to sewage, our trash pumps can do it all.






Phone

+86 18603293463

Get in touch

Please contact us using the form below or send inquiry to [email protected]

Get in touch

Please contact us using the form below or send inquiry to [email protected]

Get in touch

Please contact us using the form below or send inquiry to [email protected]

Get in touch

Please contact us using the form below or send inquiry to [email protected]
