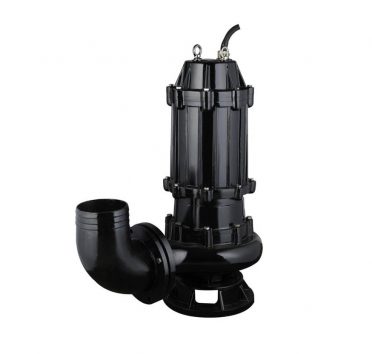

Submersible Sewage Pump

Submersible pump designed for water, wastewater pumping.

Residential, commercial, industrial & construction dewatering applications.

Specifications
  • Performance
  • Capacity:20-8500 m3/h
  • Head:6-50 m
  • Diameter:50-900 mm
  • Temperature of pumped liquid: up to 40°C (85°C on request)
  • Speed: 980rpm, 1450rpm, 2900rpm, 1180rpm, 1750rpm, 3500rpm

Features

The products have the advantages of compact structure, high efficiency, wide high efficiency range, anti-winding, no clogging, automatic coupling, high reliability, automatic protection and automatic control etc. They have unique functions in pumping solid particles and long fiber waste.


Cable outlet

Cable wire adopts special structure to prevent water leakage, electricity leakage, short circuit, stator coil burned caused by human pulling, cable jacket crushing, cable aging accidental factors, effectively reduces the failure probability of the water leakage.

Auxiliary blade

Structure with auxiliary blade used to balance external pressure of mechanical seal to preventing water into the oil chamber and prolonging the pump’s service life.

Sealing system

Application of patent structure, using three sets of mechanical seal inner the pump, increase the buffer room. Greatly increases the sealing reliability and ensure the reliability.

Protection system

Considering the accidents may happen during starting and running, built-in internally a number of alarm sensors including for connection chamber leakage, motor chamber leakage, oil chamber leakage, bearing and motor coil temperature rise.

Application

Municipal and industrial waste water

Seawage works

General industrial services

Construction
